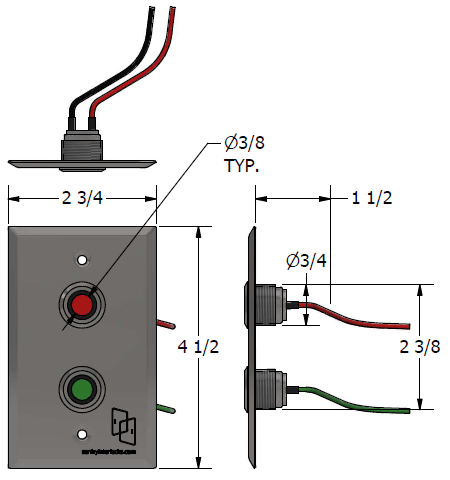

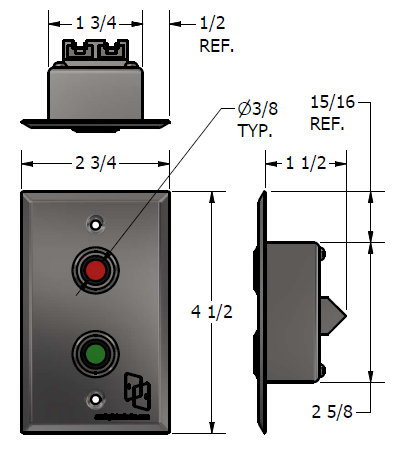

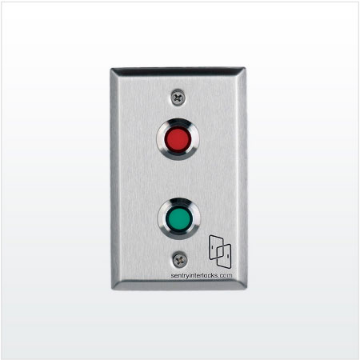

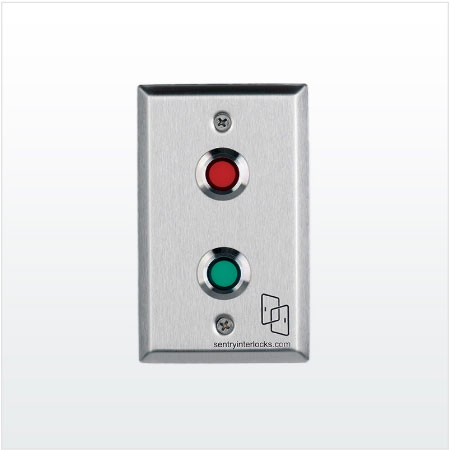

EZMLW1Ax
Red and Green LEDs for lock status
Single gang mounting
Stainless steel faceplate
x = 1: Audible alarm, LEDs have RJ45 connectors to accept Cat 5/6 cables
x = 2: No Audible alarm, standard wire leads

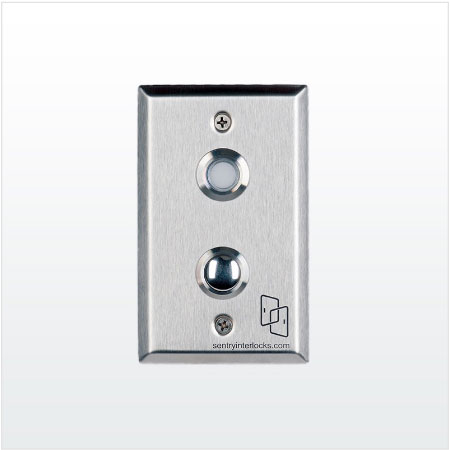

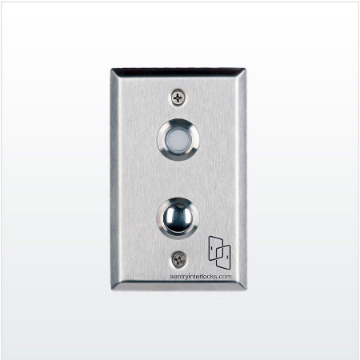

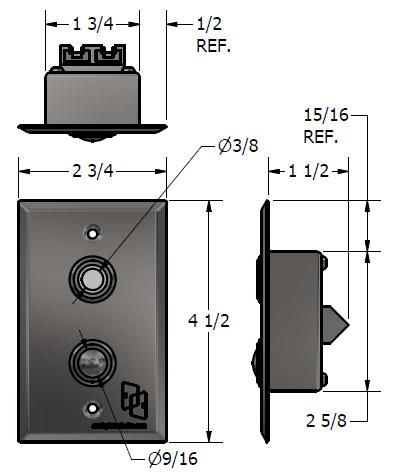

EZMLW2Ax
Bi-color LED for lock status
Stainless steel P/B used as EO switch or single door release
Single gang mounting
Stainless steel faceplate
x = 1: Audible alarm, LED and P/B have RJ45 connectors to accept Cat 5/6 cables

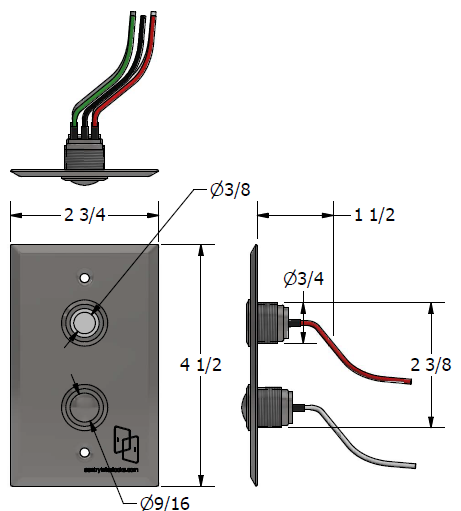

x = 3: No Audible alarm, LED and P/B have standard wire leads

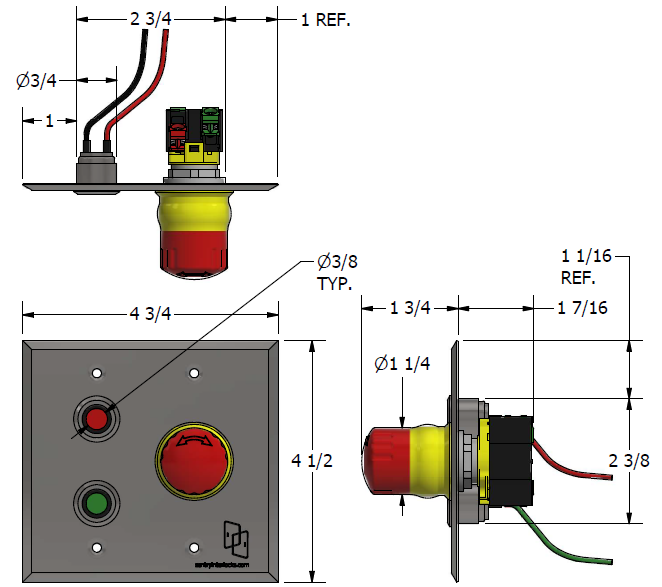

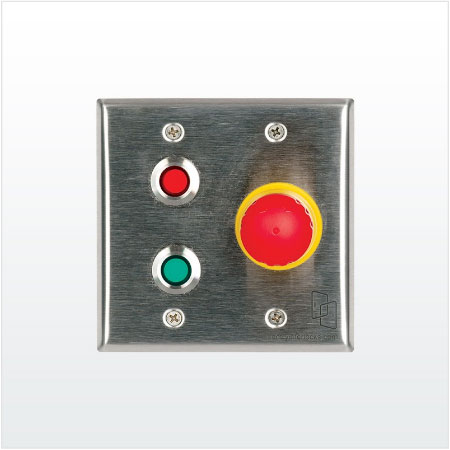

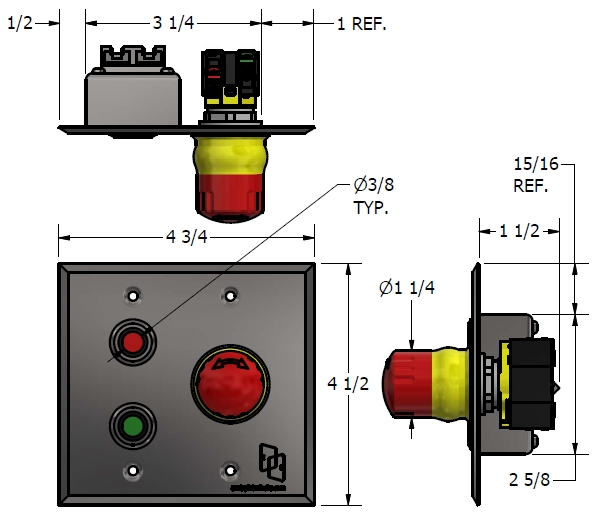

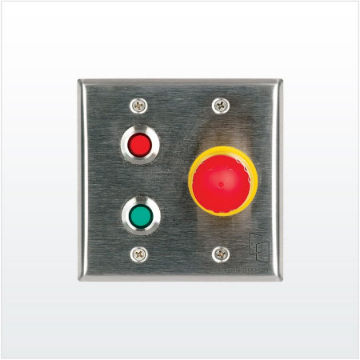

EZMLW3Ax
Red and Green LEDs for lock status
Red Mushroom EO Switch
Double gang mounting
Stainless steel faceplate
x = 1: Audible alarm, LED has RJ45 connectors to accept Cat 5/6 cables, EO switch has screw terminals
x = 2: No Audible alarm, LED has standard wire leads, EO switch has screw terminals

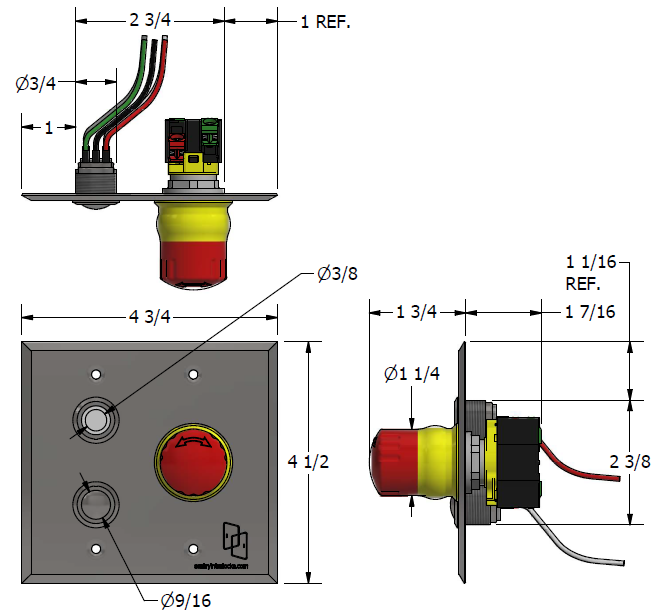

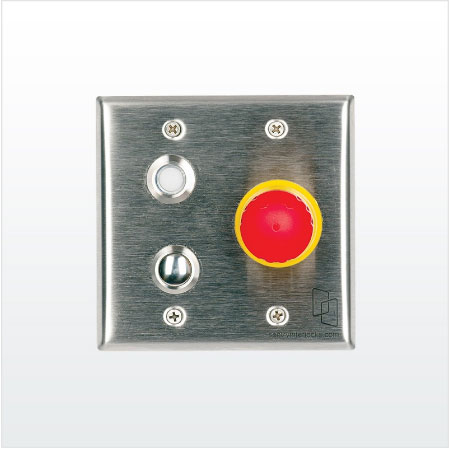

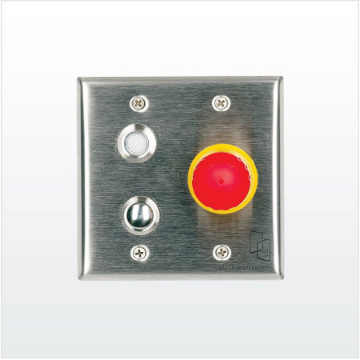

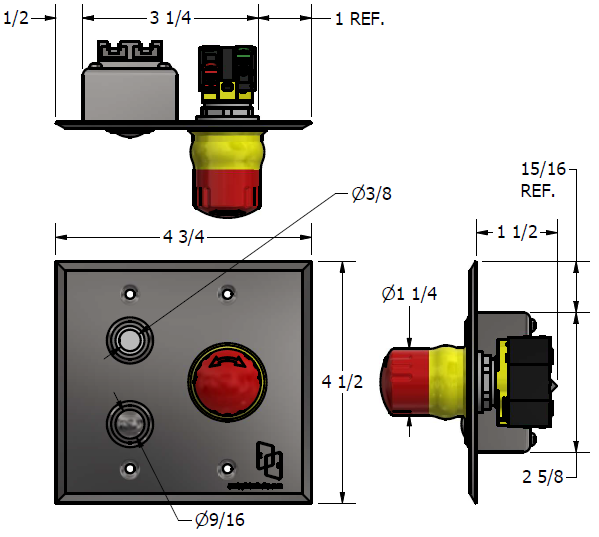

EZMLW4Ax
Bi-color LED for lock status
Red Mushroom EO Switch
Stainless steel P/B used as single door release
Double gang mounting
Stainless steel faceplate
x = 1: Audible alarm, LED and P/B have RJ45 connectors to accept Cat 5/6 cables, EO switch has screw terminals
x = 2: No Audible alarm, LED and P/B have standard wire leads, EO switch has screw terminals

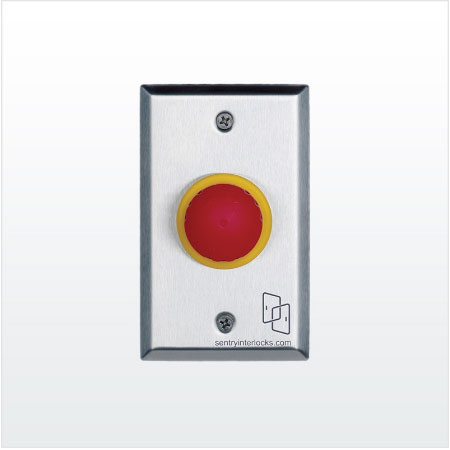

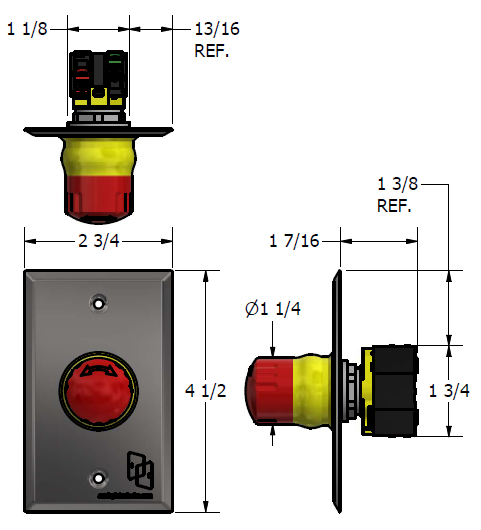

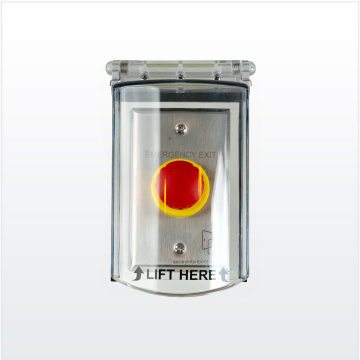

EZMLEOA1
Red Mushroom EO switch
Single gang mounting
Stainless steel faceplate
No audible alarm
EO switch has screw terminals
View Dimensions

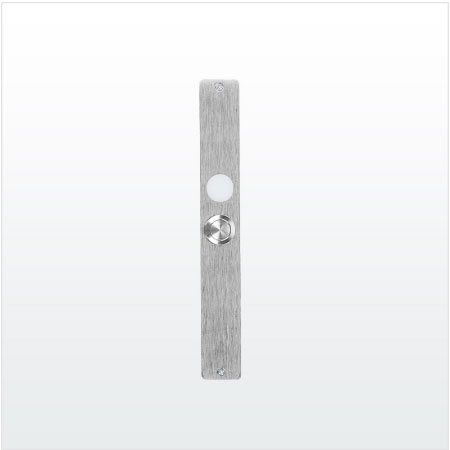

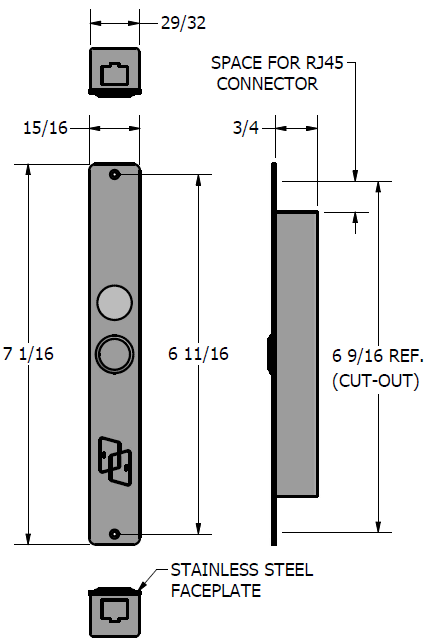

EZMLxxA1
Bi-color LED lock status
SS P/B used as EO switch or single door release
Door jamb mounting
Customizable Membrane faceplate available
Audible alarm
RJ45 connectors
xx = SI: Stainless Steel, LED light
xx = S2: Stainless Steel, LED ring
xx= M1: Aluminum body, Membrane cover
View Dimensions

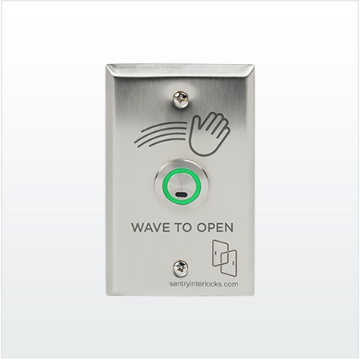

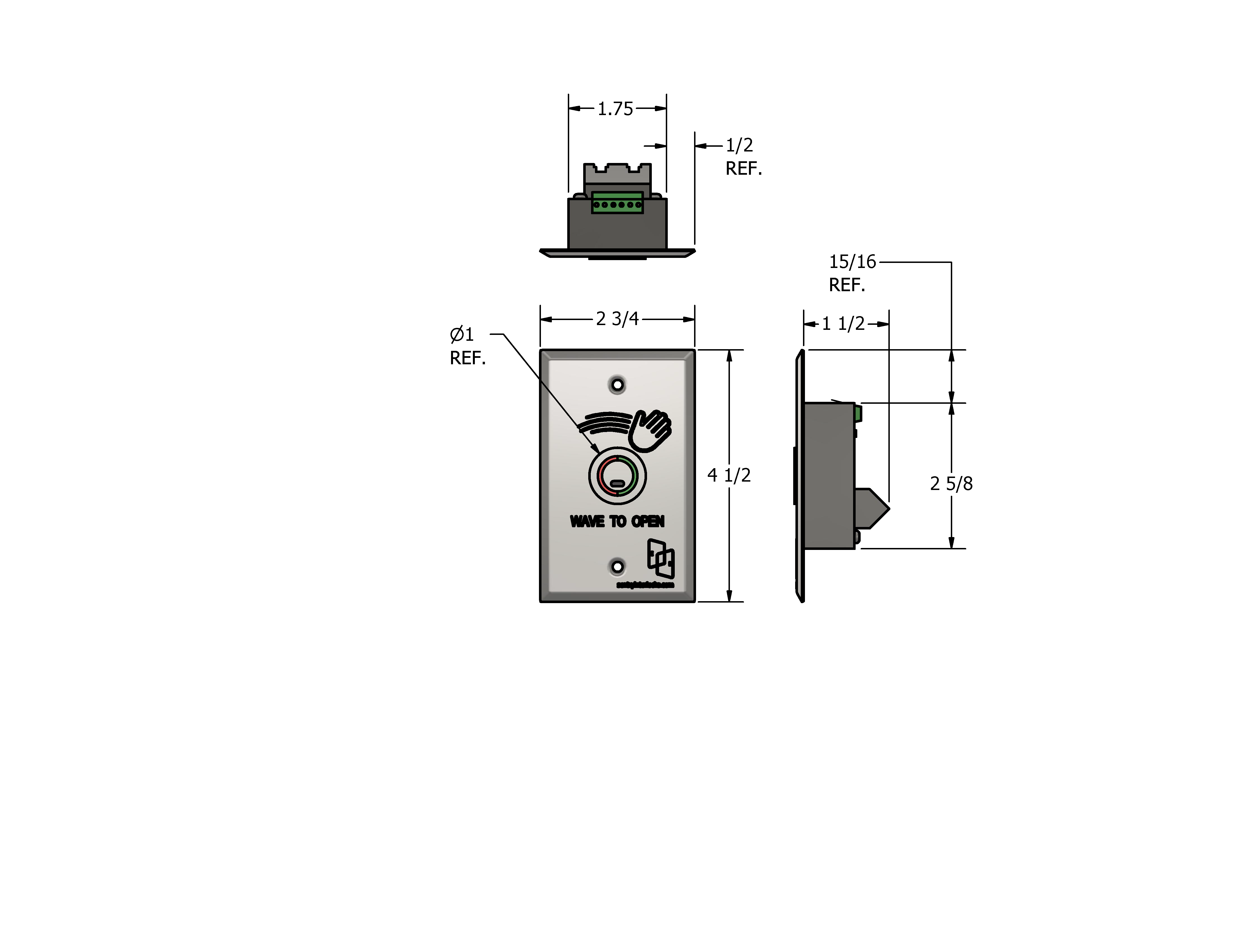

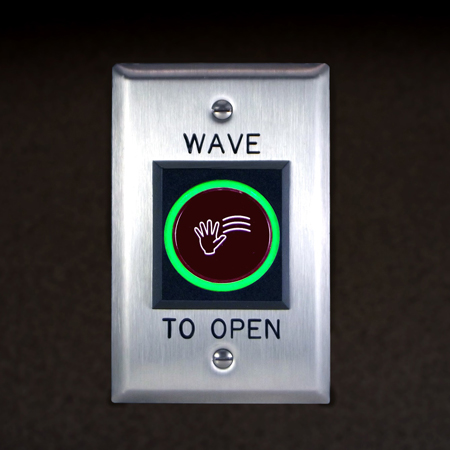

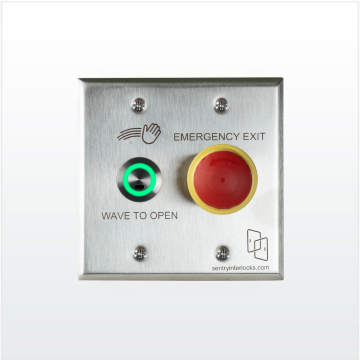

Wave Sensor
Touchless Activation within 4”
LED ring signifies status
Stainless Steel faceplate
Single or double gang
Wired leads

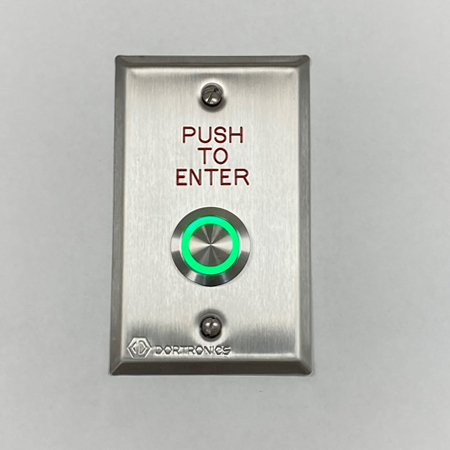

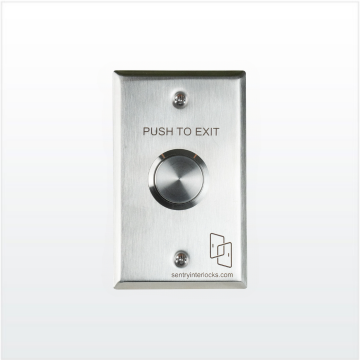

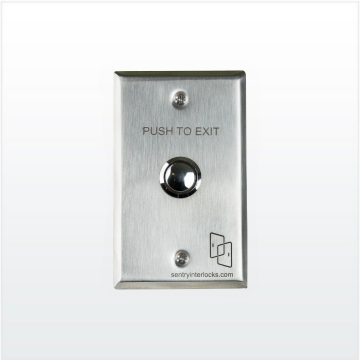

Pushbutton
Heavy duty, water proof Pushbutton
EZMLCBL01
Cat 5 UTP Cable
1 foot long
EZMLCBL25
Cat 5 UTP Cable
25 feet long
Plenum rated

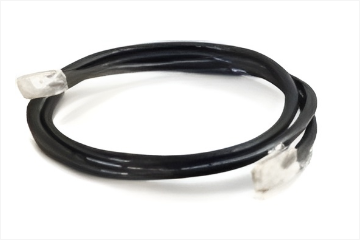

EZMLCBL50
Cat 5 UTP Cable
50 feet long
Plenum rated

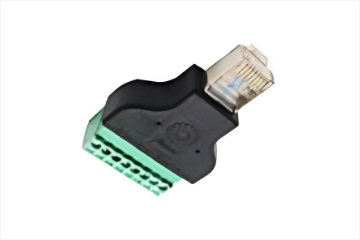

EZMLADM45
8-screw Adapter
Male RJ45

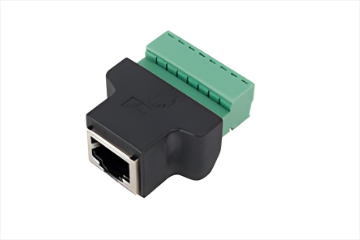

EZMLADF45
8-screw Adapter
Female RJ45
KEY PRODUCT FEATURES
Powered by the EZ Modlock Modules, no external power required
Used with fail-safe electric locks powered by the EZ Modlock Modules

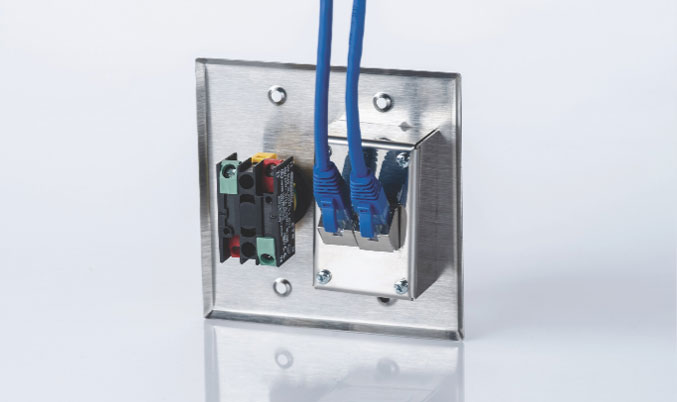

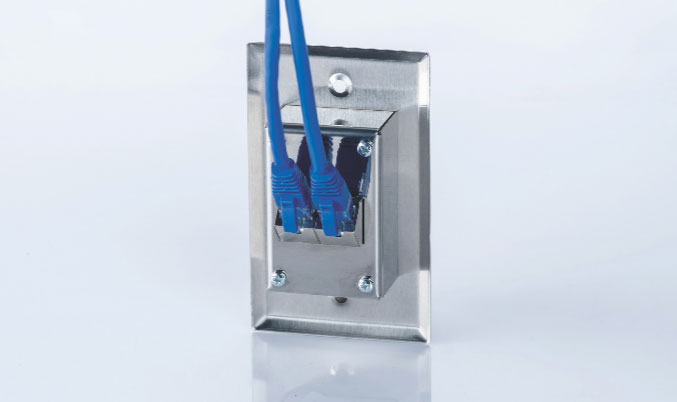

RJ45 modular connectors allow use of Cat 5/6 cable which eliminates time consuming wiring
An audible alarm is included to warn of emergencies, security breach or a door left ajar
Stainless steel (SS) faceplate can withstand regular cleanings including Spor-Klenz
Can be recessed or surface mounted using standard single gang or double gang electrical boxes or the slim Door Jamb models fit into cutouts in the door frame
Standard text included, optional text available upon request
