EZ ModLock – Multi Door Basic

The ideal solution for complex 5 - 10 door “mantrap” applications with normally unlocked doors.

Product Specifications

Part NumberEZMLMDBA1
Power Requirements24VDC, 1.5 amps
Power SupplyUL Listed, 90-264VAC to 24VDC, 47-63Hz, 1.5A
Module Dimensions (H x W x D)3.75" x 6.3" x 1.5" (95 x 160 x 38mm)
Module MaterialPlastic with integrated mounting ears
ConnectionsDoor 1 and Door 2: Cat 5 cable with RJ45 connector
Communication 1: Cat 5 cable with RJ45 connector
Communication 2: Cat 5 cable with RJ45 connector
Removable Terminal Strip: Qty 2-3 screw terminal strip on bottom
BMS: Cat 5 cable with RJ45 connector
LED IndicatorsDoor status, electric lock status, door indicator status
Number of Doors Connected/Managed2/2 (an additional four EZ ModLock – Multi Door Basic, Multi Door Access and Multi Door Timer modules allow up to 10 doors to be managed)
Door Opening LogicL1, L2, L3 (L4 is available as a custom adder)
Door Opening Logic ProgrammingQty 6 DIP switches
Door Initial StateNormally unlocked
Automatic Door ManagementYes
Power Supply for Door Opening Accessories24VDC supplied via terminal strip
Warranty2-year limited warranty

Product Description

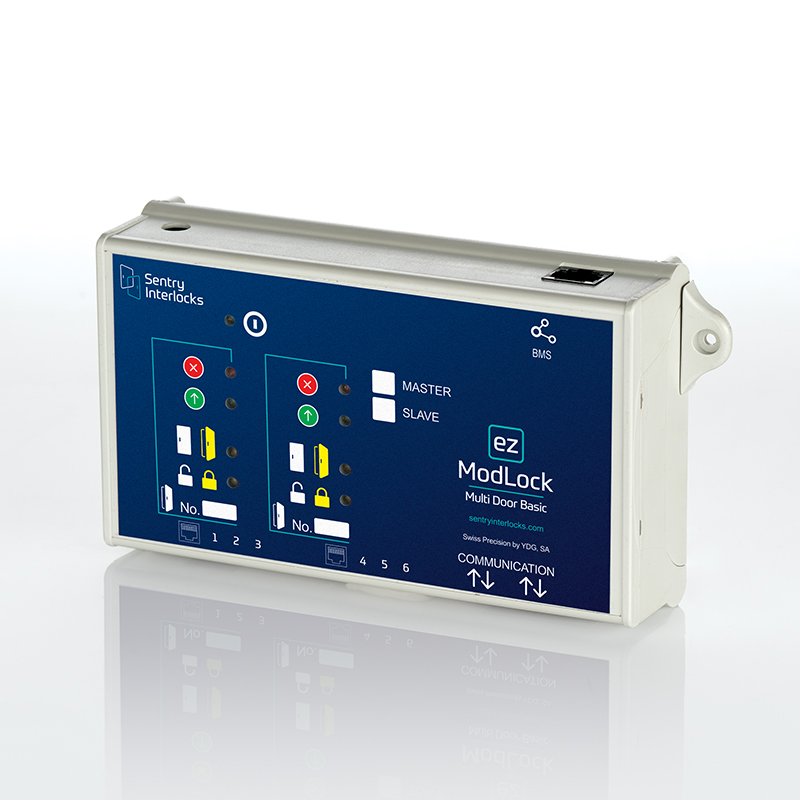

  • EZ ModLock – Multi Door Basic is the module for the complex 5 – 10 door “mantrap” applications with normally unlocked doors.
  • EZ ModLock – Multi Door Basic can manage manual swing doors or manual sliding doors.
  • For automatic doors, use the EZ ModLock – Multi Door Access.
  • The interactive LEDs on the module indicate real-time door status, electric lock status as well as the door indicator status. The EZ ModLock – Multi Door Basic module can manage any 24VDC failsafe electric lock.
  • A single EZ ModLock – Multi Door Basic module can manage 2 doors but is part of a modular system in which 4 additional modules can be connected to manage a complex “mantrap” of up to 10 doors.

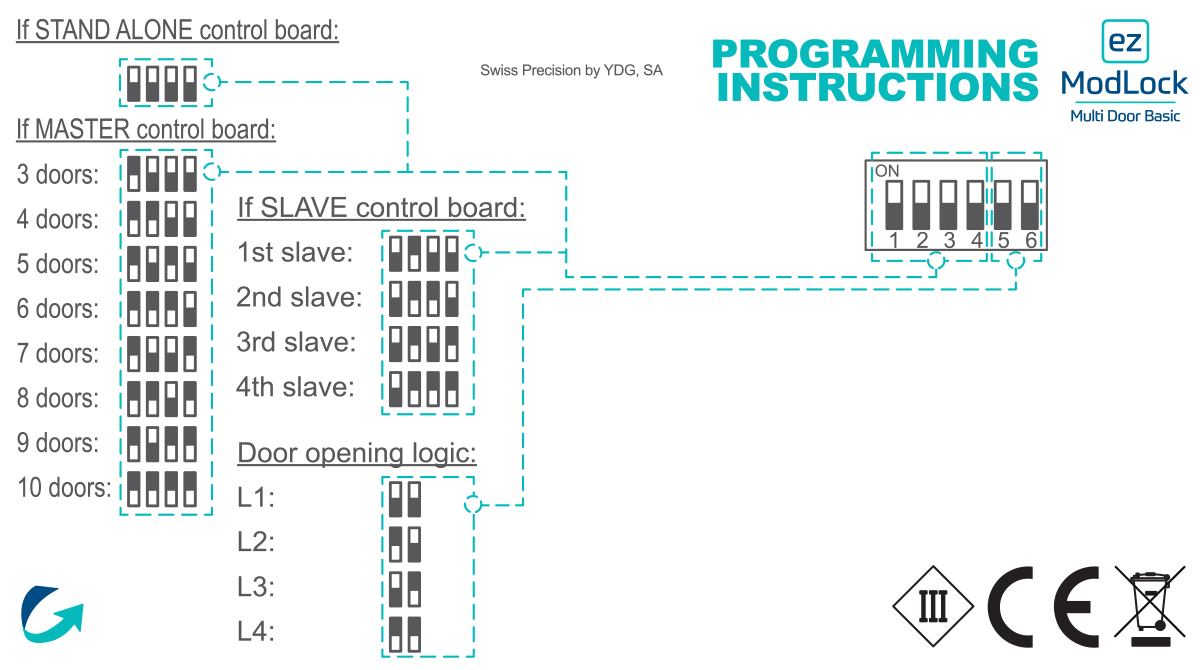

  • Six DIP switches are located on the rear of the module and are used to control the door logic. There is a chart that illustrates to the installer how to set the Master – Slave logic in the case of multiple interlocking door applications.
  • The complex 4+ door “mantraps” usually require a custom programmed opening logic that can easily be provided by Sentry Interlocks LLC.
  • Every module ships with 2 dry contact relay outputs that replicate door status and can be connected to the digital inputs of a Building Management System (BMS) for the monitoring and analysis of door operations.
