EZ ModLock 2-Door Timer Module

The ideal solution for simple 2 door “mantrap” applications.

Interlocking door systems in pharmaceutical and life sciences facilities often require a period of stabilization before users can fully pass through the system. The EZ ModLock 2-Door Timer Module brings precise, time-based control to your two-door interlock system so you can protect that period without adding complexity.

Ensure Proper Space Reconditioning, Automatically

Space reconditioning is critical in cleanrooms and pharmaceutical settings for processes like:

  • Air pressure equalization
  • Air exchange
  • Contamination control

When the first door closes, the timer automatically engages. The second door cannot be unlocked until the preset delay expires, usually between 0 and 60 seconds. The two-door system works exclusively on doors that are normally unlocked.

Ideal Applications for a 2 Door Timer Interlock Module

Common applications for the EZ ModLock 2-Door Timer Module include:

  • Pharmaceutical gowning areas and airlocks (PALs/MALs)
  • Cleanrooms requiring strict air exchange protocols between entries
  • Static pass-throughs
  • Any space where cross-contamination risk demands a timed delay between door cycles

Know Your Entry Status With a Glance

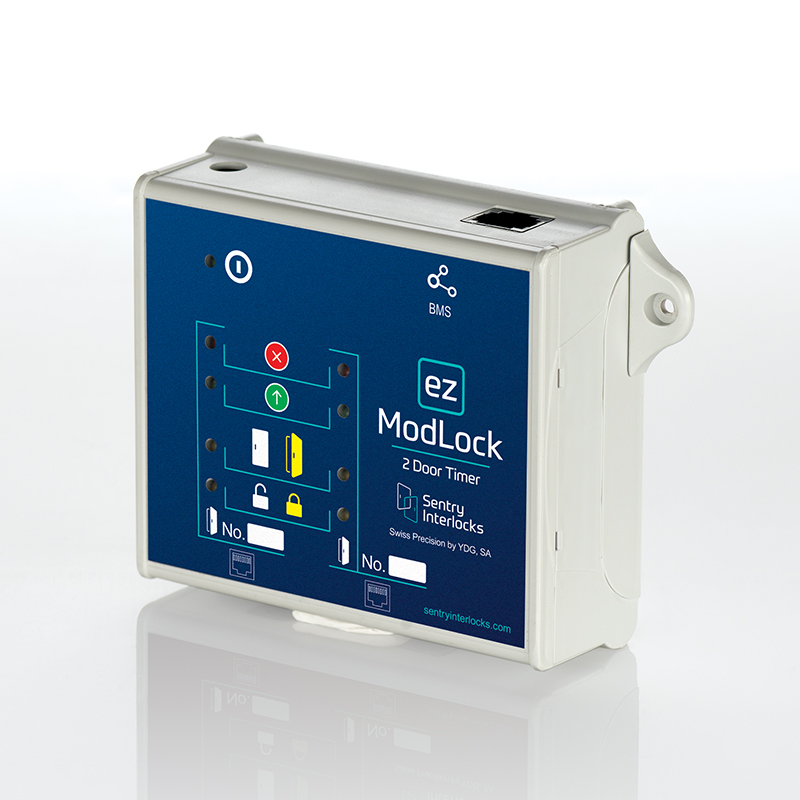

Interlock door systems prevent people from entering spaces before the environment has returned to specification, which is why visual cues like LED indicators are essential for improving workflow. Our module contains interactive LEDs, including a real-time door status indicator light and an electric lock status indicator. The visual feedback provides information about whether the door is open, locked or in a time delay, which makes it easier for operators to proceed safely.

The only applicable logic for a two-door mantrap is L1, also known as room logic. This logic ensures that whenever one door is open, the other door’s lock is actuated. A timer module complements this logic by ensuring that the second door remains locked until the environment behind it stabilizes.

The timer prevents the second door from opening too soon, even if the first door is already locked. On the rear of the module is a rotary timer switch and two DIP switches to set the desired door open/close scenario. You can choose which door or doors generate the time delay.

Seamless Integration and Safety

The EZ ModLock 2-Door Timer Module is part of our modular EZ ModLock line, which offers plug-and-play capabilities for manually operated door systems. It can be integrated with building management systems for centralized monitoring. It’s compatible with all electric failsafe locks and other devices operating at 24VDC, so you can save time and money on replacements.

Our systems are not compatible with access control systems or fire alarms, and they cannot be used on doors that are normally locked.

Product Specifications

Part Number EZML2DTA1
Power Requirements 24VDC, 1.5 amps
Power Supply UL Listed, 90-264VAC to 24VDC, 47-63Hz, 1.5A
Module Dimensions (H x W x D) 3.75" x 4.25" x 1.5" (95 x 108 x 38mm)
Module Material Plastic with integrated mounting ears
Connections Door 1 and Door 2: Cat 5 cable with RJ45 connector
BMS: Cat 5 cable with RJ45 connector
LED Indicators Door status, electric lock status, door indicator status
Number of Doors Connected/Managed 2/2
Door Opening Logic L1
Door Opening Logic Programming Qty 2 DIP switches
Recovery Time Programming 1 settable rotary switch, 0-90 seconds in 10-second increments or 0-9 minutes in 1 minute increments
Door Initial State Normally unlocked
Automated Door Management No
Warranty 2-year limited warranty

  • EZ ModLock – 2 Door Timer interlock is the ideal solution for the simple 2 doors “mantrap” applications, such as gowning rooms, Material Air Lock (MAL), and Personnel Airlock (PAL), where the doors are normally unlocked and a time delay is required prior to opening.
  • EZ ModLock – 2 Door Timer can manage manual swing doors, manual sliding doors, or even a static Pass Through. For automatic doors, use the EZ ModLock – Multi Door Access.
  • The interactive LEDs on the module indicate real-time door status, electric lock status as well as the door indicator status light. The EZ ModLock – 2 Door Timer module can manage any 24VDC failsafe electric lock.
  • The only applicable logic for a 2 door “mantrap” is logic “L1,” (also known as “room logic”), which means that any time one of the doors is open, the other door’s lock will be actuated.

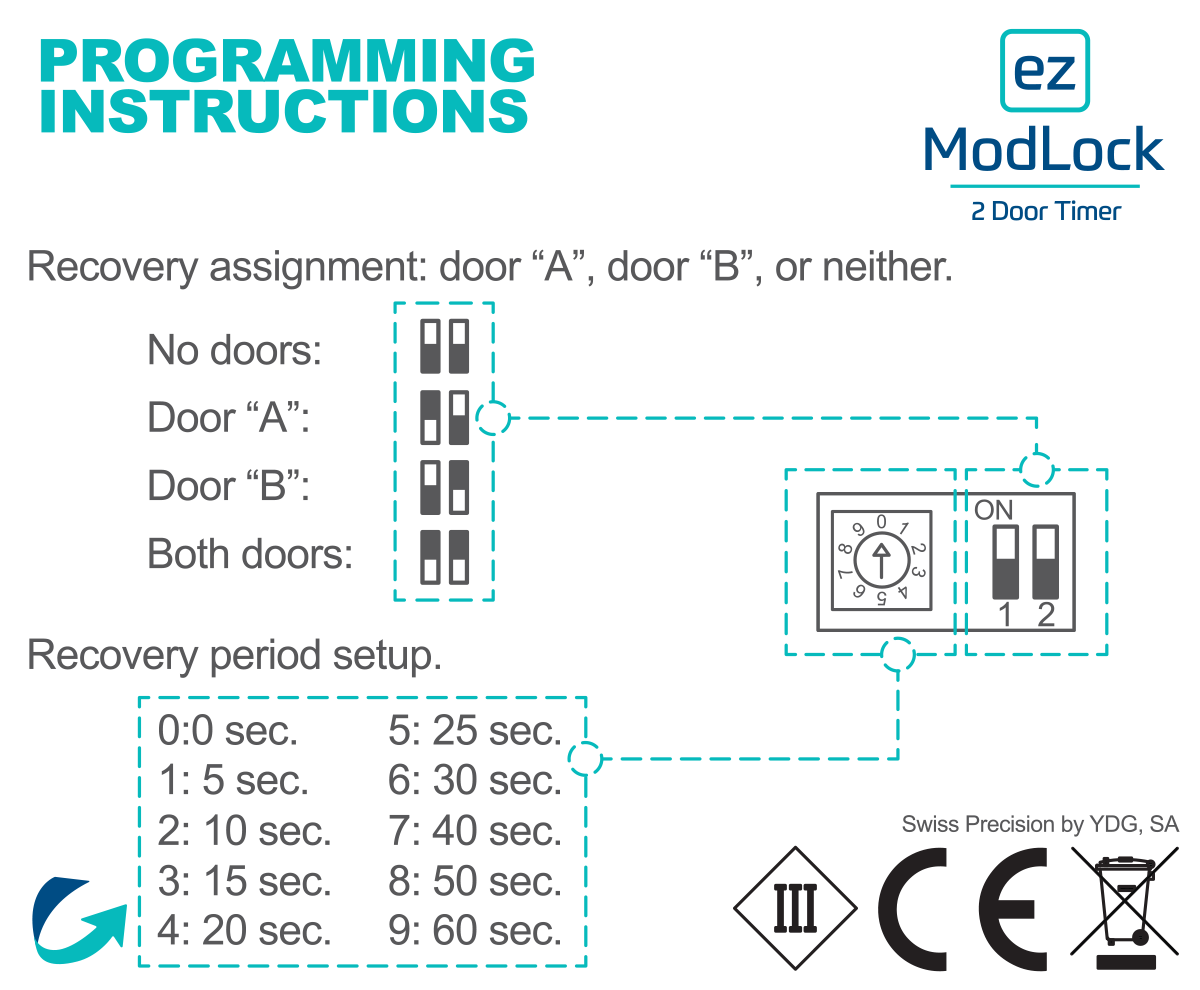

  • The adjustable time delay allows classified spaces to be reconditioned to specification after a door opening and closing. Once a door in the system is closed, both the door locks will actuate and only unlock after a time delay (settable from 0 to 60 sec.). On the rear of the module is a rotary timer switch and 2 DIP switches to set the desired door open/close scenario – the user can select if both or only 1 door generates the time delay.
  • Every module ships with 2 dry contact relay outputs that replicate door status and can be connected to the digital inputs of a Building Management System (BMS) for the monitoring and analysis of door operations.

Get a Quote on Your Timer Module Solution

Sentry Interlocks is dedicated to designing easy-to-install door interlocking systems highly regulated industries can rely on. You can also take advantage of our integration services to support proper installation and integration with the rest of your facility.

Our EZ ModLock 2-Door Timer Module presents a purpose-built solution to regulating traffic flow within your facility. Contact us online or call 267-369-1882 to discuss your door system needs and request a free quote.
