EZ ModLock – 2 Door Expansion

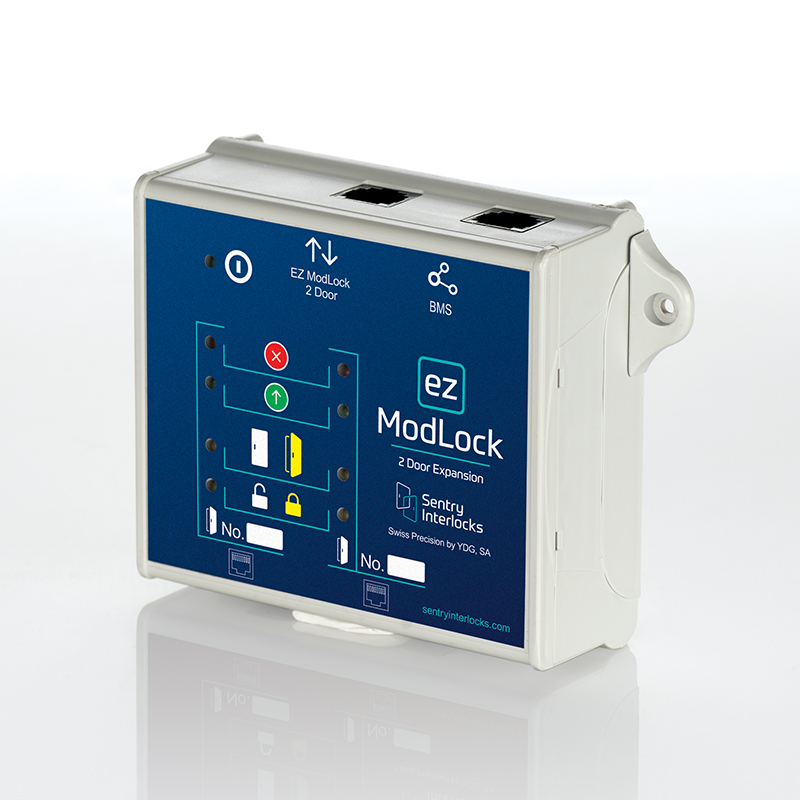

A passive extension module of the EZ ModLock – 2 Door.
Product Specifications
| Part Number | EZML2DEA1 |
| Power Requirements | 24VDC, 1.5 amps |
| Power Supply | Power provided by EZ ModLock – 2 Door via Cat 5 cable |
| Module Dimensions (H x W x D) | 3.75" x 4.25" x 1.5" (95 x 108 x 38mm) |
| Module Material | Plastic with integrated mounting ears |
| Connections | Door 3 and Door 4: Cat 5 cable with RJ45 connector Daisy chain connection to EZ ModLock – 2 Door: Cat 5 cable with RJ45 connector BMS: Cat 5 cable with RJ45 connector |
| LED Indicators | Door status, electric lock status, door indicator status |
| Number of Doors Connected/Managed | 2/0 (management of 3rd and 4th door is by the additional EZ ModLock – 2 Door) |
| Door Opening Logic | L1, L2, L3 using the 2 Door Module logic |
| Door Opening Logic Programming | Uses DIP switches of 2 Door Module |
| Door Initial State | Normally unlocked |
| Automated Door Management | No |
| Warranty | 2-year limited warranty |
Product Description
- EZ ModLock – 2 Door Expansion is a passive extension module of the EZ ModLock – 2 Door and allows a 3rd and 4th door to be connected and managed.
- EZ ModLock – 2 Door Expansion can manage manual swing doors, manual sliding doors, or even a static Pass Through. For automatic doors, use the EZ ModLock – Multi Door Access.
- The interactive LEDs on the module indicate real-time door status, electric lock status as well as the door indicator status. The EZ ModLock – 2 Door Expansion module can manage any 24VDC failsafe electric lock.
- Once the EZ ModLock – 2 Door Expansion module is daisy chained to the EZ ModLock – 2 Door module, the 4 DIP switches located on the rear of the EZ ModLock – 2 Door module control the logic for all connected doors.
- Every module ships with 2 dry contact relay outputs that replicate door status and can be connected to the digital inputs of a Building Management System (BMS) for the monitoring and analysis of door operations.
